Nanjing Makas Carbide Knives Co.,Ltd.produce Zund Z22 Blade,Zund Z22,Zund,Zund Blade,zund 3910315,
Zund 3910315 Blade,Zund Z22 Oscillating Blade, Zund Z22 Digital Cutter Blade, Zund Z22 Knife Blade.

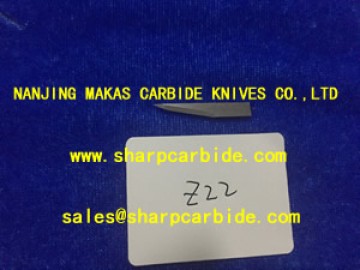

TC knife blade Z 22
cutting depth approx. 14 mm
no. 3910315
suitable for machine manufacturer: original blade no.
Comagrav
CombiPro
Dyss
Esko Kongsberg: ( G42458265, 42458265, BLD-SF422, (i-422) )
iEcho: ( E22 )
Mécanuméric: 100610380
Summa: ( 500-0810, 500-9810 )
Zünd: 3910315, Z22
recommended materials:
Corrugated, Corrugated plastic, Corrugated sandwich, Sandwich board, Foam board, Folding Carton, Magnetic foil, Polyester fabric, Rubber, Felt, Foam
Zund Blade Z22 HTZ-22compatible knife for Zund automated cutting machine
Description: Fine, robust blade with low overcut; designed to cut small radii and intricate detail. Similar to HTZ-20, but more robust and with a larger overcut.
Thickness: 0,63 mm.
Tools: EOT and POT.
Composition: HM - Hard Metal.
Materials: Corrugated cardboard: B, C, BC, EB and E flute, Light foam core, Foam, Folding carton: 100 - 1500 g, Polyester fabric: coated textiles, Rubber, ejection rubber, Magnetic material, Corrugated plastic and Felt.
Compatible Brand
Zund
Equivalent
Z22
Thickness
0.63 mm.
Max. cutting depth
13 mm
Pre-cut
1.2 + 0.2 x Tm
Post-cut
-
Composition
HM - Metal Duro
Tool
POT / EOT
Recommended materials
Cardboard
Corrugated
Corrugated plastic
Felt
Foam
Foam board / Foam
Folding carton
Magnetic material
Polyester fabric
Rubber
Sandwich board
Associated brands of raw materials
Airplac Foamboards
Egafix
Espanso Cartonato
Foam-X
Forex
Gatorfoam
Kapamount
Kapaplast
Kromaplast
Maxxboard
Oscillating blade pointed
Fine, robust blade with low overcut; designed to cut small radii and intricate detail. Similar to Z20, but more robust and with a larger overcut.
Corrugated
Corrugated plastic
Sandwich board
Foam board/Foam
Folding Carton
Magnetic foil
Polyester fabric
Rubber
Felt
