G42447235

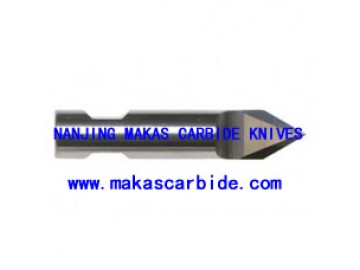

Knife blade with 8mm cylindrical shaft for use with the RM (RigidMaterial) knife tool. 2 times 30 degrees angle. Can cut up to about 5-6mm thick materials.

Good blades for cutting rigid materials such as different gasket materials, forex and solid carton. Special Tungsten Carbide knife blade with an asymmetric edge, optimized for a nice cut ploughing all the burrs to one side.

Material	Sub Category	Thickness	Method
Adhesive (decal) vinyl	Adhesive (decal) vinyl	Standard thickness	Through
Corrugated plastic	Corrugated plastic	< 5mm	Static
Flexible plastic sheet	Flexible plastic sheet	< 2mm	Static
Flexo clicheés	processed, for labels	Processed, for lables	Static
Flexo clicheés	unprocessed	Unprocessed	Static
Foamed PVC / PS	Foamed PVC / PS (Forex®, Sintra®)	< 5mm	Static
Folding carton	Folding carton	Folding carton	Static
Lenticular display panels	Lenticular display panels	< 5mm	Static
Magnetic foil	Magnetic foil	Magnetic foil	Static
Solid board	Display board	3mm	Static

D	Shank diameter	8mm
C	Maximum cutting thickness	6 mm - 1/4"

0.8 x 0.8 x 3.9 cm

0.02 kg
