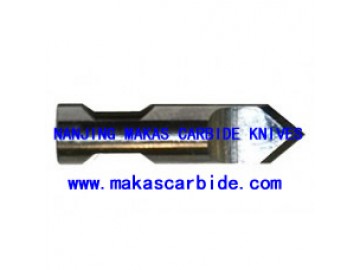

Esko Blades BLD-DR6169A - Esko Blades DR6169A - Tungsten Carbide Knives and Blades
Home   /   Products   /   Esko Blades   /   Esko Blades DR6169A

Esko Blades BLD-DR6169A, Kongsberg Blades BLD-DR6169A, Esko  Plotter Blades, Kongsberg Plotter Blades, Esko digital cutting bldes

Code
G42449058
Recommended use
Tungsten carbide blade for thinner flexible or rigid materials such as solid carton, vinyl, plastics. 2x40* cutting angle. Spear-headed shape. Asymmetric knife blade that ploughs all burrs’s and waste to one side
Applications
BLD-DR6169A
BLD-DR6169A
Cutting Info
Material Sub Category Thickness Method
Adhesive (decal) vinyl Adhesive (decal) vinyl Standard thickness Through
Corrugated plastic Corrugated plastic < 5mm Assymetric
Flexible plastic sheet Flexible plastic sheet < 2mm Assymetric
Folding carton Folding carton Folding carton Assymetric
Magnetic foil Magnetic foil Magnetic foil Assymetric
Solid board Display board 3mm Assymetric
Specifications
D Shank diameter 6mm
C Maximum cutting thickness 3mm - 1/8"
BLD-DR6169A
Requirements
To use BLD-DR6169A on your Kongsberg table, you need one of the following configurations.
XP/C
XL/XN/ X/V
XE
Tool insert
Adapter

Hi-force knife tool
G34068759


VariCut knife tool
G34061135


Static knife tool
G34061135

Is your configuration not complete? Contact Esko and we will help you out

Dimensions
0.6 x 2.5 x 0.6 cm
Weight
0.007 kg
