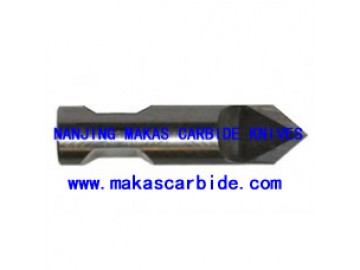

Esko Blades BLD-DR6161 - Esko Blades DR6161 - Tungsten Carbide Knives and Blades
Home   /   Products   /   Esko Blades   /   Esko Blades DR6161

Esko Blades BLD-DR6161, Kongsberg Blades BLD-DR6161, Esko Plotter Blades, Kongsberg Plotter Blades, Esko digital cutting bldes

G42445528
Recommended use
Tungsten carbide blade for thinner flexible or rigid materials such as solid carton, vinyl, plastics. 2x40* cutting angle. Spear-headed shape. Asymmetric knife blade that ploughs all burrs’s and waste to one side.
Applications
BLD-DR6161
BLD-DR6161
Cutting Info
Material Sub Category Thickness Method
Adhesive (decal) vinyl Adhesive (decal) vinyl Standard thickness Through
Corrugated Microflute Microflute Static
Corrugated plastic Corrugated plastic < 5mm Static
Flexible plastic sheet Flexible plastic sheet < 2mm Static
Folding carton Folding carton Folding carton Static
Magnetic foil Magnetic foil Magnetic foil Static
Solid board Display board 3mm Static
Specifications
D Shank diameter 6mm
C Maximum cutting thickness 3mm - 1/8"
BLD-DR6161
Requirements
To use BLD-DR6161 on your Kongsberg table, you need one of the following configurations.
XP/C
XL/XN/ X/V
XE
Tool insert
Adapter

Hi-force knife tool
G34068759


VariCut knife tool
G34061135


Static knife tool
G34061135

Is your configuration not complete? Contact Esko and we will help you out

Dimensions
0.6 x 0.6 x 2.5 cm
Weight
0.01 kg
