Esko Blades DR6160 - Esko Blades DR6160 - Tungsten Carbide Knives and Blades
Home   /   Products   /   Esko Blades   /   Esko Blades DR6160

Esko blaes, esko knives, kongsberg blades, kongsberg knives, esko bld-dr6160, shaft blades, oscillating blades, flat blades

Code
G42445510
Recommended use

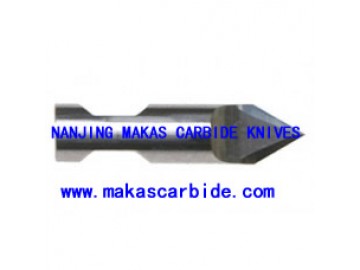

Tungsten carbide blade for thinner flexible or rigid materials such as solid carton, vinyl, plastics. 2x30* cutting angle. Spear-headed shape
Applications
BLD-DR6160
BLD-DR6160
Cutting Info
Material Sub Category Thickness Method
Adhesive (decal) vinyl Adhesive (decal) vinyl Standard thickness Through
Corrugated plastic Corrugated plastic < 5mm Static
Flexible plastic sheet Flexible plastic sheet < 2mm Static
Foam board soft (PUR) Foam board soft (PUR) < 5mm Static
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm Static
Folding carton Folding carton Folding carton Static
Lenticular display panels Lenticular display panels < 5mm Static
Magnetic foil Magnetic foil Magnetic foil Static
Solid board Display board 3mm Static
Specifications
D Shank diameter 6mm
C Maximum cutting thickness 5mm - 3/16"
BLD-DR6160
Requirements
To use BLD-DR6160 on your Kongsberg table, you need one of the following configurations.
XP/C
XL/XN/ X/V
XE
Tool insert
Adapter
Hi-force knife tool
G34068759
VariCut knife tool
G34061135
Static knife tool
G34061135

Is your configuration not complete? Contact Esko and we will help you out

Dimensions
0.6 x 0.6 x 2.5 cm
Weight
0.007 kg
