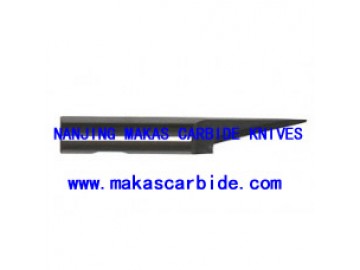

Esko Blades BLD-SR6316 - Esko Blades SR6316 - Tungsten Carbide Knives and Blades
Home   /   Products   /   Esko Blades   /   Esko Blades SR6316

Esko Blades BLD-SR6316, Kongsberg Blades BLD-SR6316, Esko Plotter Blades, Kongsberg Plotter Blades, Esko digital cutting bldes

Code
G42459743
Description

Similar to the SR6315 but even thinner blade optimiced for finer details. Blade thickness 0.35mm. Excellent blade for cutting of materials like corrugated plastic and soft foam board.

Recommended use
A more slender tungsten carbide blade giving less overcut.
Applications
BLD-SR6316
BLD-SR6316
Cutting Info
Material Sub Category Thickness Method
Corrugated plastic Corrugated plastic < 12mm High frequency oscillating
Corrugated plastic Corrugated plastic < 12mm Oscillating
Foam board soft (PUR) Foam board soft (PUR) 10-20mm High frequency oscillating
Specifications
D Shank diameter 6mm
C Maximum cutting thickness 14mm
BLD-SR6316
Requirements
To use BLD-SR6316 on your Kongsberg table, you need one of the following configurations.
XP/C
XL/XN/ X/V
XE
Tool insert
Adapter


Reciprocating/MP HI Frequency knife tool
G34053207


Long stroke knife tool
n/a


VibraCut/HI Frequence VibraCut knife tool
G34046425

Is your configuration not complete? Contact Esko and we will help you out

Dimensions
0.6 x 0.6 x 4 cm
Weight
0.007 kg
