Esko Blades BLD-SR6315 - Esko Blades SR6315 - Tungsten Carbide Knives and Blades
Home   /   Products   /   Esko Blades   /   Esko Blades SR6315

Esko Blades BLD-SR6315, Kongsberg Blades BLD-SR6315, Esko Plotter Blades, Kongsberg Plotter Blades, Esko digital cutting bldes

Code
G42449504
Description

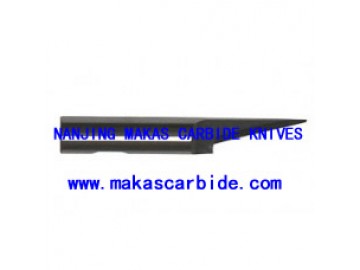

A more slender tungsten carbide blade producing less overcut. Good blade for cutting materials like soft foam board. Thickness 0.6mm.

Recommended use
A more slender tungsten carbide blade giving less overcut.
Applications
BLD-SR6315
BLD-SR6315
Cutting Info
Material Sub Category Thickness Method
Corrugated Microflute Microflute Oscillating
Corrugated Single Wall F,E..(1-3mm) recycled High frequency oscillating
Corrugated Single Wall B,C,A...(3-5mm) recycled Oscillating
Corrugated Double wall EB,BC...(5-7mm) recycled High frequency oscillating
Corrugated Double wall EB,BC...(5-7mm) recycled Oscillating
Corrugated plastic Corrugated plastic < 12mm High frequency oscillating
Corrugated plastic Corrugated plastic < 12mm Oscillating
Foam board soft (PUR) Foam board soft (PUR) 10-20mm High frequency oscillating
Specifications
D Shank diameter 6mm
C Maximum cutting thickness 14mm - 9/16"
BLD-SR6315
Requirements
To use BLD-SR6315 on your Kongsberg table, you need one of the following configurations.
XP/C
XL/XN/ X/V
XE
Tool insert
Adapter


Reciprocating/MP HI Frequency knife tool
G34053207


Long stroke knife tool
n/a


VibraCut/HI Frequence VibraCut knife tool
G34046425

Is your configuration not complete? Contact Esko and we will help you out

Dimensions
0.6 x 0.6 x 4 cm
Weight
0.007 kg
