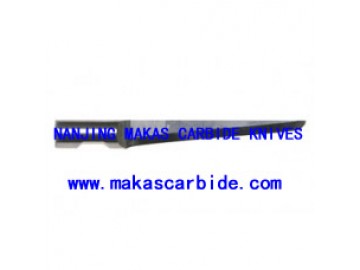

Esko Blades BLD-SR6313 - Esko Blades SR6313 - Tungsten Carbide Knives and Blades
Home   /   Products   /   Esko Blades   /   Esko Blades SR6313

Esko Blades BLD-SR6313, Kongsberg Blades BLD-SR6313, Esko Plotter Blades, Kongsberg Plotter Blades, Esko digital cutting bldes

Code
G42443085
Description

This high-quality Tungsten blade is one of our top sellers. The 8° cutting angle enables fine details in a wider range of foam qualities, as well as 30 mm Re-board. The flattened tip increases the cutting speed and protect PVC cutting underlays.

Applications
BLD-SR6313 (i-6116)
BLD-SR6313 (i-6116)
Cutting Info
Material Sub Category Thickness Method
Expanded polystyrene Expanded polystyrene < 30mm Oscillating
Honeycomb / Fluted core board Honeycomb- fluted core board 20-30mm Oscillating
Protective foam Low density < 30mm Oscillating
Protective foam Medium density < 30mm Oscillating
Specifications
D Shank diameter 6mm
C Maximum cutting thickness 32mm - 1 1/4"
BLD-SR6313 (i-6116)
Requirements
To use BLD-SR6313 (i-6116) on your Kongsberg table, you need one of the following configurations.
XP/C
XL/XN/ X/V
XE
Tool insert
Adapter


Foam Knife
G34053231


Foam Head
G34057125


Foam Unit
G34057125

Is your configuration not complete? Contact Esko and we will help you out

Dimensions
0.6 x 0.6 x 5.2 cm
Weight
0.007 kg
