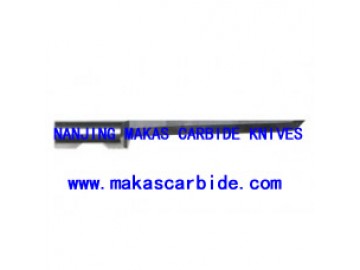

Esko Blades BLD- SR6311 - Esko Blades SR6311 - Tungsten Carbide Knives and Blades
Home   /   Products   /   Esko Blades   /   Esko Blades SR6311

Esko Blades BLD-SR6311, Kongsberg Blades BLD-SR6311, Esko Plotter Blades, Kongsberg Plotter Blades, Esko digital cutting bldes

G42443101
Recommended use
2.5° cutting angle enables very fine details with little over-cut in foam qualities with good cutting properties. Pointed tip for use with felt underlays
Applications
BLD-SR6311 (i-6114)
BLD-SR6311 (i-6114)
Cutting Info
Material Sub Category Thickness Method
Expanded polystyrene Expanded polystyrene < 30mm Oscillating
Honeycomb / Fluted core board Honeycomb- fluted core board 20-30mm Oscillating
Protective foam Low density < 30mm Oscillating
Protective foam Medium density < 30mm Oscillating
Specifications
D Shank diameter 6mm
C Maximum cutting thickness 32mm - 1 1/4"
BLD-SR6311 (i-6114)
Requirements
To use BLD-SR6311 (i-6114) on your Kongsberg table, you need one of the following configurations.
XP/C
XL/XN/ X/V
XE
Tool insert
Adapter


Foam Knife
G34053231


Foam Head
G34057125


Foam Unit
G34057125

Is your configuration not complete? Contact Esko and we will help you out

Dimensions
0.6 x 0.6 x 5.2 cm
Weight
0.007 kg
