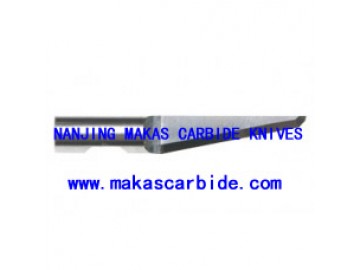

Esko Blades BLD-SR6310 - Esko Blades SR6310 - Tungsten Carbide Knives and Blades
Home   /   Products   /   Esko Blades   /   Esko Blades SR6310

Esko Blades BLD-SR6310, Kongsberg Blades BLD-SR6310, Esko Plotter Blades, Kongsberg Plotter Blades, Esko digital cutting bldes

Code
G42441626
Recommended use
Gives nice results in thick and rigid paper-based materials, such as triple wall corrugated and Re-board, when used with the Multi Purpose High-Frequency Knife Tool.
Applications
BLD-SR6310 (i-7702)
BLD-SR6310 (i-7702)
Cutting Info
Material Sub Category Thickness Method
Carpet materials w/ rubber backing Carpet materials w/ rubber backing < 10mm Oscillating
Corrugated Triple wall Triple recyc (7-16mm) High frequency oscillating
Corrugated plastic Corrugated plastic < 16mm High frequency oscillating
Expanded polystyrene Expanded polystyrene < 20mm Oscillating
Foam board soft (PUR) Foam board soft (PUR) < 5mm High frequency oscillating
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm High frequency oscillating
Honeycomb / Fluted core board Honeycomb- fluted core board 16mm High frequency oscillating
Protective foam Low density < 20mm Oscillating
Specifications
D Shank diameter 6mm
C Maximum cutting thickness 20mm - 3/4"
BLD-SR6310 (i-7702)
Requirements
To use BLD-SR6310 (i-7702) on your Kongsberg table, you need one of the following configurations.
XP/C
XL/XN/ X/V
XE
Tool insert
Adapter


Reciprocating/MP HI Frequency knife tool
G34053207


Long stroke knife tool
n/a


VibraCut/HI Frequence VibraCut knife tool
G34046425

Is your configuration not complete? Contact Esko and we will help you out

Dimensions
0.6 x 0.6 x 4 cm
Weight
0.007 kg
