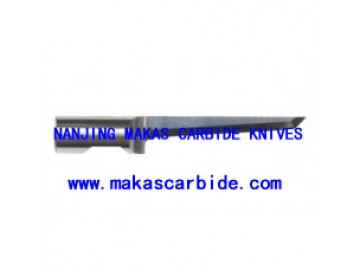

Esko Blades BLD-SR6303 - Esko Blades SR6303 - Tungsten Carbide Knives and Blades
Home   /   Products   /   Esko Blades   /   Esko Blades SR6303

Esko Blades BLD-SR6303, Kongsberg Blades BLD-SR6303, Esko Plotter Blades, Kongsberg Plotter Blades, Esko digital cutting bldes

ode
G42441642
Recommended use
Good blade for 15 and 20mm foam board in combination with the multi-purpose High-Frequency tool.
Applications
BLD-SR6303 (i-7705)
BLD-SR6303 (i-7705)
Cutting Info
Material Sub Category Thickness Method
Corrugated plastic Corrugated plastic < 16mm High frequency oscillating
Ejection rubber (for dies) Ejection rubber (for dies) < 12mm Long stroke oscillating
Expanded polystyrene Expanded polystyrene < 20mm Oscillating
Foam board soft (PUR) Foam board soft (PUR) 10-20mm High frequency oscillating
Protective foam Low density < 20mm Oscillating
Protective foam Foam board soft (PUR) < 20mm Oscillating
Specifications
D Shank diameter 6mm
C Maximum cutting thickness 20mm - 3/4"
BLD-SR6303 (i-7705)
Requirements
To use BLD-SR6303 (i-7705) on your Kongsberg table, you need one of the following configurations.
XP/C
XL/XN/ X/V
XE
Tool insert
Adapter


Reciprocating/MP HI Frequency knife tool
G34053207


Long stroke knife tool
n/a


VibraCut/HI Frequence VibraCut knife tool
G34046425

Is your configuration not complete? Contact Esko and we will help you out

Dimensions
0.6 x 0.6 x 5 cm
Weight
0.008 kg
