Esko Blades BLD-SR6224 - Esko Blades SR6224 - Tungsten Carbide Knives and Blades
Home   /   Products   /   Esko Blades   /   Esko Blades SR6224

Esko Blades BLD-SR6224, Kongsberg Blades BLD-SR6224, Esko  Plotter Blades, Kongsberg Plotter Blades, Esko digital cutting bldes

Code
G42438135
Description

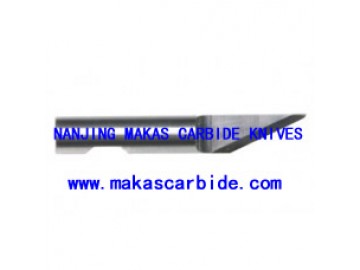

This long life tungsten carbide blade is one of our top seller. The blade has a design optimized for high performance in most types of corrugated board.

Applications
BLD-SR6224 (i-7704)
BLD-SR6224 (i-7704)
Cutting Info
Material Sub Category Thickness Method
Carpet materials w/ rubber backing Carpet materials w/ rubber backing < 10mm Oscillating
Corrugated Single Wall F,E..(1-3mm) recycled High frequency oscillating
Corrugated Single Wall F,E..(1-3mm) recycled Oscillating
Corrugated Double wall EB,BC...(5-7mm) recycled High frequency oscillating
Corrugated Double wall EB,BC...(5-7mm) recycled Oscillating
Corrugated Triple wall Triple recyc (7-16mm) High frequency oscillating
Corrugated plastic Corrugated plastic < 5mm High frequency oscillating
Corrugated plastic Corrugated plastic < 5mm Oscillating
Foam board soft (PUR) Foam board soft (PUR) < 5mm Oscillating
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm Oscillating
Honeycomb / Fluted core board Honeycomb- fluted core board 5mm Oscillating
Solid board Display board 3mm High frequency oscillating
Specifications
D Shank diameter 6mm
C Maximum cutting thickness 12mm - 1/2"
BLD-SR6224 (i-7704)
Requirements
To use BLD-SR6224 (i-7704) on your Kongsberg table, you need one of the following configurations.
XP/C
XL/XN/ X/V
XE
Tool insert
Adapter


Reciprocating/MP HI Frequency knife tool
G34053207


Long stroke knife tool
n/a

VibraCut/HI Frequence VibraCut knife tool
G34046425

Is your configuration not complete? Contact Esko and we will help you out

Dimensions
0.6 x 0.6 x 4 cm
Weight
0.011 kg
