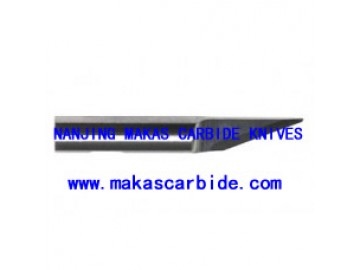

Esko Blades BLD-SR6223 - Esko Blades SR6223 - Tungsten Carbide Knives and Blades
Home   /   Products   /   Esko Blades   /   Esko Blades SR6223

Esko Blades BLD-SR6223, Kongsberg Blades BLD-SR6223, Esko Plotter Blades, Kongsberg Plotter Blades, Esko digital cutting bldes

Code
G42437293
Description

This long-life Tungsten carbide blade is one of our top sellers. The blade has a design optimized for high performance in most types of corrugated.

Recommended use
Long life tungsten carbide blade. Works well with most kind of corrugated board
Applications
BLD-SR6223 (i-7703)
BLD-SR6223 (i-7703)
Cutting Info
Material Sub Category Thickness Method
Carpet materials w/ rubber backing Carpet materials w/ rubber backing < 10mm Oscillating
Corrugated Microflute Microflute Oscillating
Corrugated Single Wall F,E..(1-3mm) virgin Oscillating
Corrugated Single Wall B,C,A...(3-5mm) virgin High frequency oscillating
Corrugated Double wall EB,BC...(5-7mm) virgin High frequency oscillating
Corrugated Double wall EB,BC...(5-7mm) virgin Oscillating
Corrugated Triple wall Triple Virgin (7-16mm) High frequency oscillating
Corrugated plastic Corrugated plastic < 5mm High frequency oscillating
Corrugated plastic Corrugated plastic < 5mm Oscillating
Foam board soft (PUR) Foam board soft (PUR) < 5mm Oscillating
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm Oscillating
Honeycomb / Fluted core board Honeycomb- fluted core board 5mm Oscillating
Specifications
D Shank diameter 6mm
C Maximum cutting thickness 12mm - 1/2"
BLD-SR6223 (i-7703)
Requirements
To use BLD-SR6223 (i-7703) on your Kongsberg table, you need one of the following configurations.
XP/C
XL/XN/ X/V
XE
Tool insert
Adapter


Reciprocating/MP HI Frequency knife tool
G34053207


Long stroke knife tool
n/a

VibraCut/HI Frequence VibraCut knife tool
G34046425

Is your configuration not complete? Contact Esko and we will help you out

Dimensions
0.6 x 0.6 x 4 cm
Weight
0.01 kg
